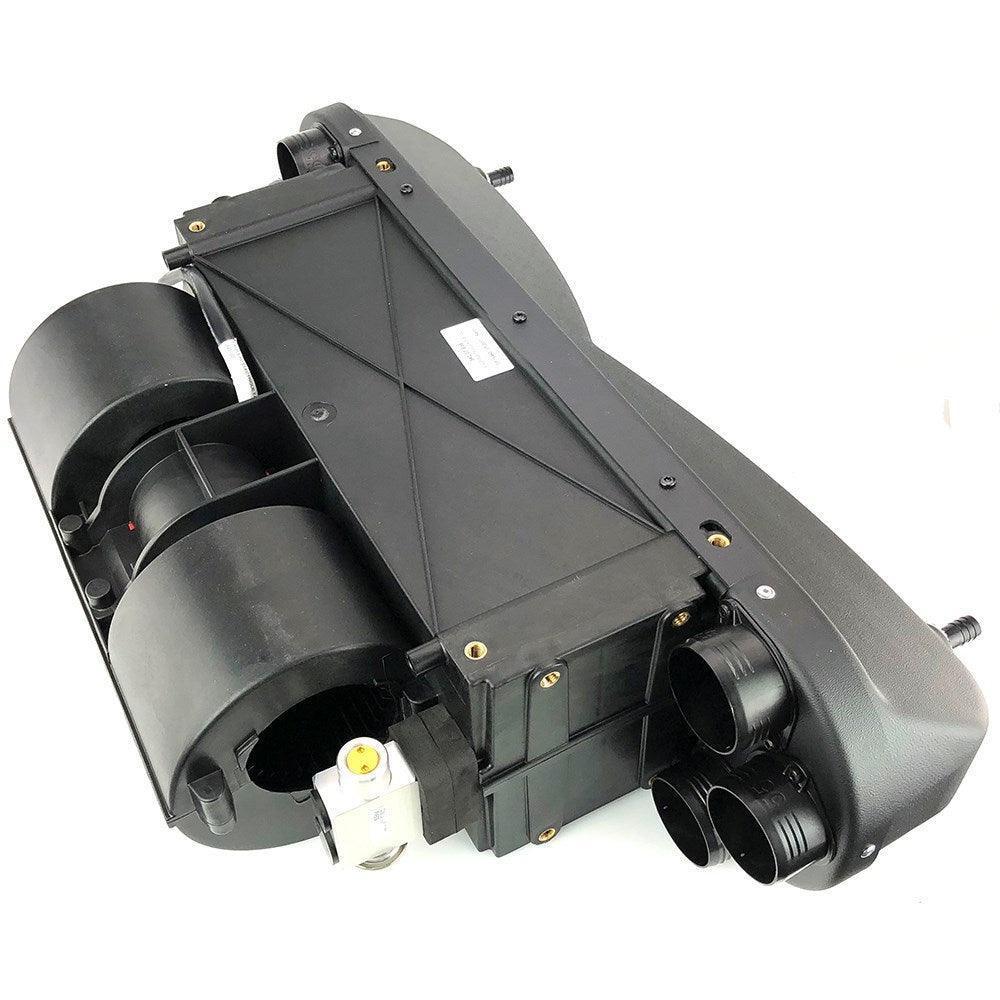

9Kw Vertical Heat and Air Conditioning Unit
This unit has a massive 9kW cooling capacity for vans and larger vehicles plus heating.
It is designed for vertical mounting and has two 13mm drain outlets on the plenum but can also be horizontally mounted using the alternative two 12mm condensate drains.
Dimensions 648mm wide x 411mm high x 182mm thick.

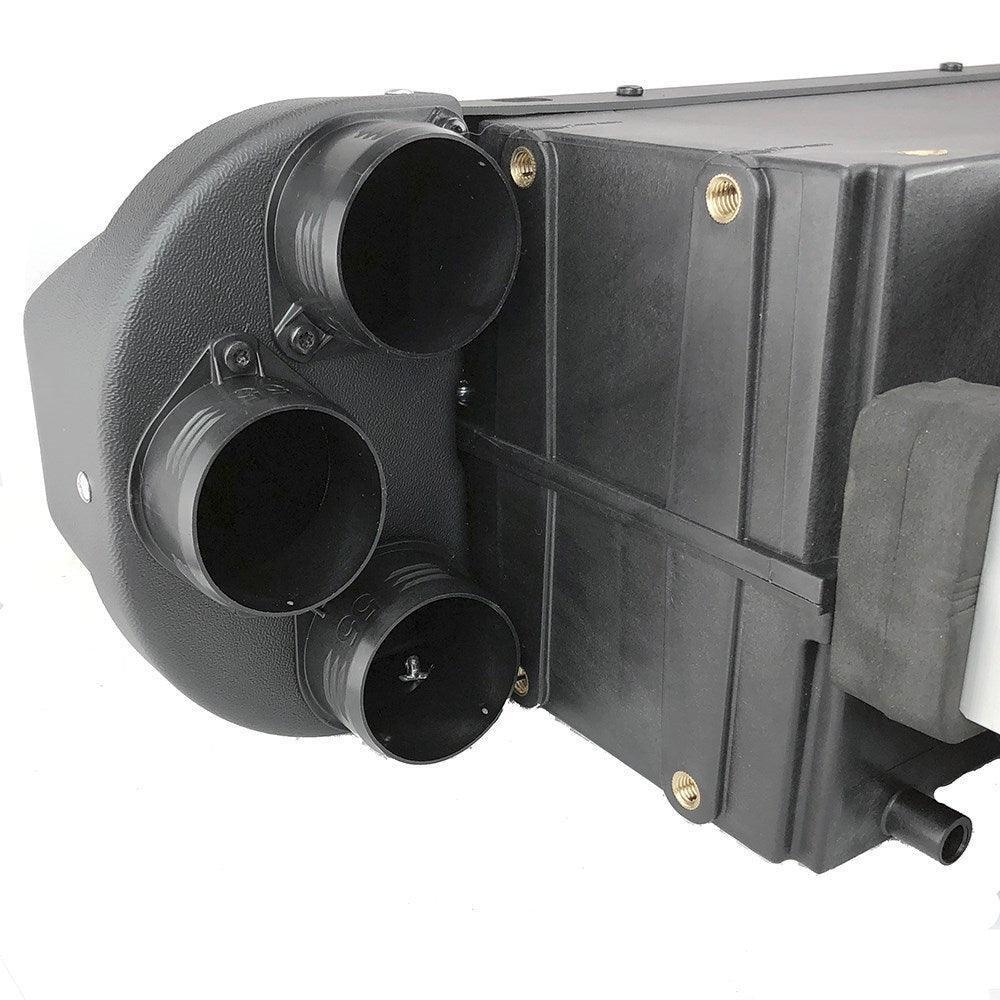

Fitted with six air outlets 55mm O.D., 49mm I.D. but others (40mm, 45mm, 50mm and 55mm) are available separately.
12 volts.
Max 300 watt power consumption.
Three speed fan with thermostat.
Maximum airflow 725 m³ per hour.

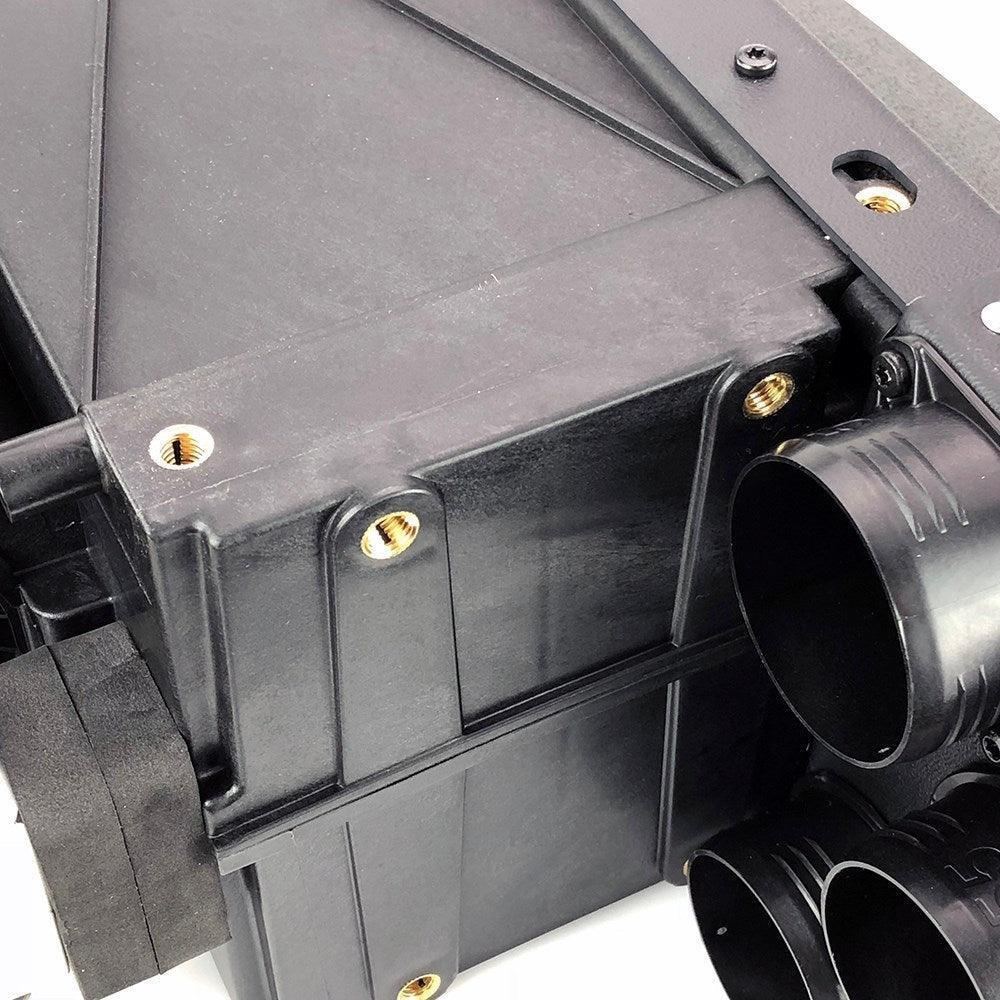

There are sixteen, M8 female threaded, brass inserts for multiple mounting options.
The Kit includes a desiccant drier with a trinary safety/radiator fan switch, a complete set of hose unions, ‘O’ rings and charging/service ports (not interchangeable but others are available), a heater flow control valve and a three-speed fan switch panel. (Hoses not included but we can supply. See installation guide.)
NOTE: Installation requires an engine-driven compressor and a condensing radiator (possibly with cooling fan).
Hose lengths are best determined and purchased after installation of components.
NOTE: For UK customers we can now offer a crimping service for your hoses. For just £60 we will collect your boxed-up hoses and unions, crimp them and send them back to you. Full instructions on how to prepare the hoses and unions will be sent with the kit.
