Anodised Aluminium Line Lock Brake Valve 1/8" NPT

Anodised Aluminium Line Lock Brake Valve 1/8" NPT

Satin anodised aluminium body and handle of superb quality.

1/8" NPT female threads. Either of our part numbers PSBF13 (3/8"UNF) or PSBF17 (M10 x 1) will be suitable.

Four M5 fixing threads on a 28mm x 25mm rectangle.

Body size: 36 x 26 x 31mm.

Lever length 120mm.

Weight 154g.

NOTE: May be black or silver anodised depending on availability.

LINE LOCK INLINE BRAKE VALVE #LINELOC

$12.73

Original: $42.42

-70%
Anodised Aluminium Line Lock Brake Valve 1/8" NPT—

$42.42

$12.73
Product image 1

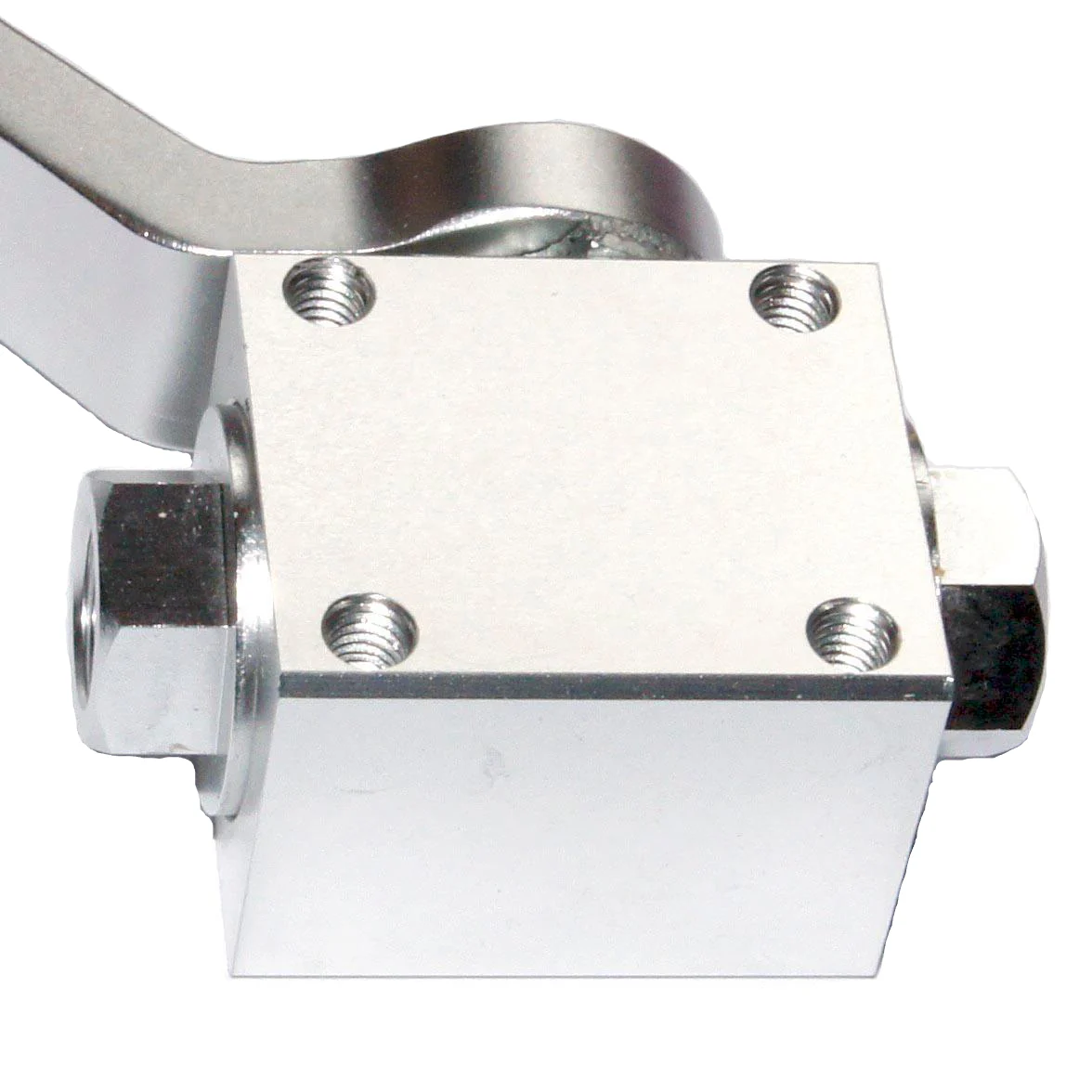

Product image 2

Description

Satin anodised aluminium body and handle of superb quality.

1/8" NPT female threads. Either of our part numbers PSBF13 (3/8"UNF) or PSBF17 (M10 x 1) will be suitable.

Four M5 fixing threads on a 28mm x 25mm rectangle.

Body size: 36 x 26 x 31mm.

Lever length 120mm.

Weight 154g.

NOTE: May be black or silver anodised depending on availability.

LINE LOCK INLINE BRAKE VALVE #LINELOC
