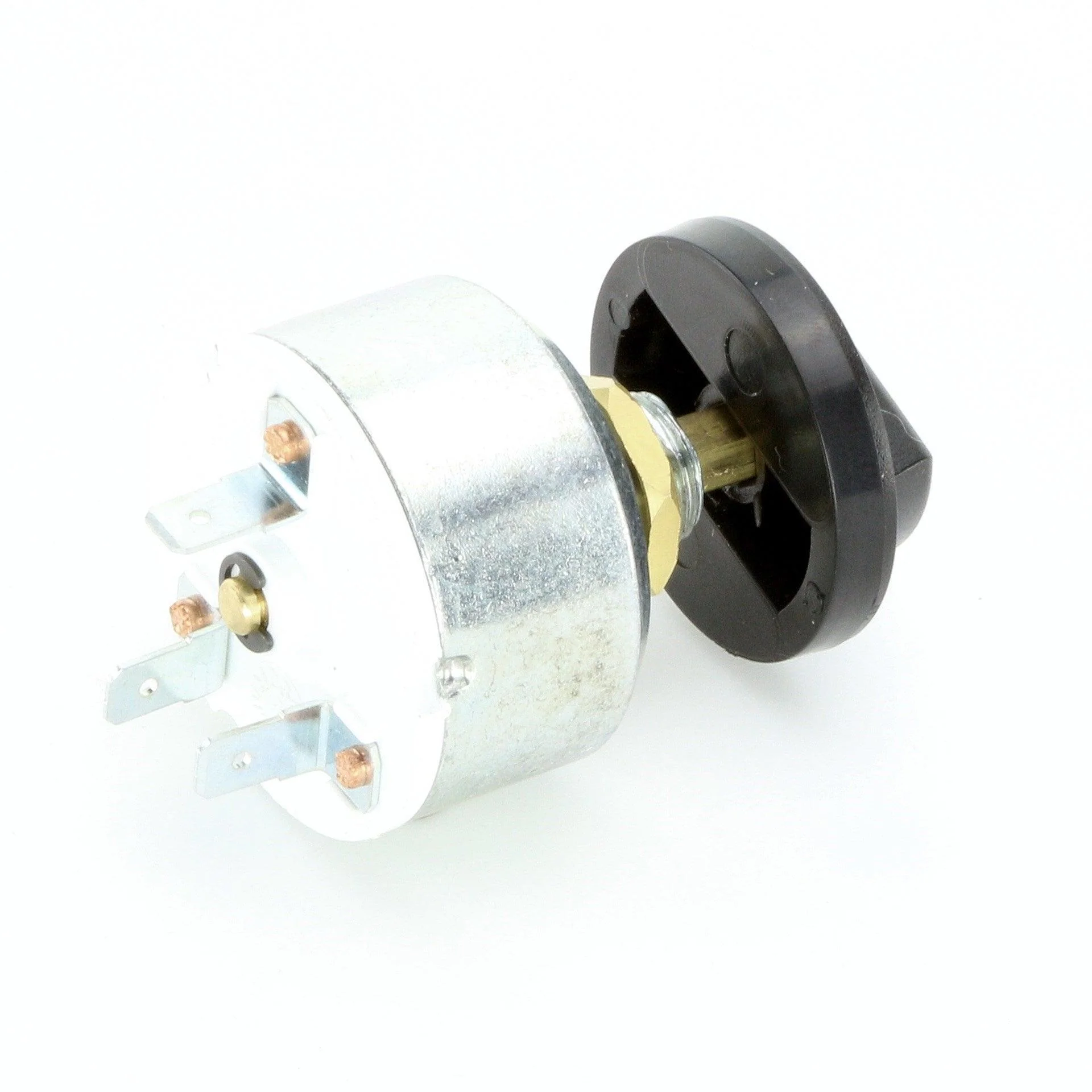

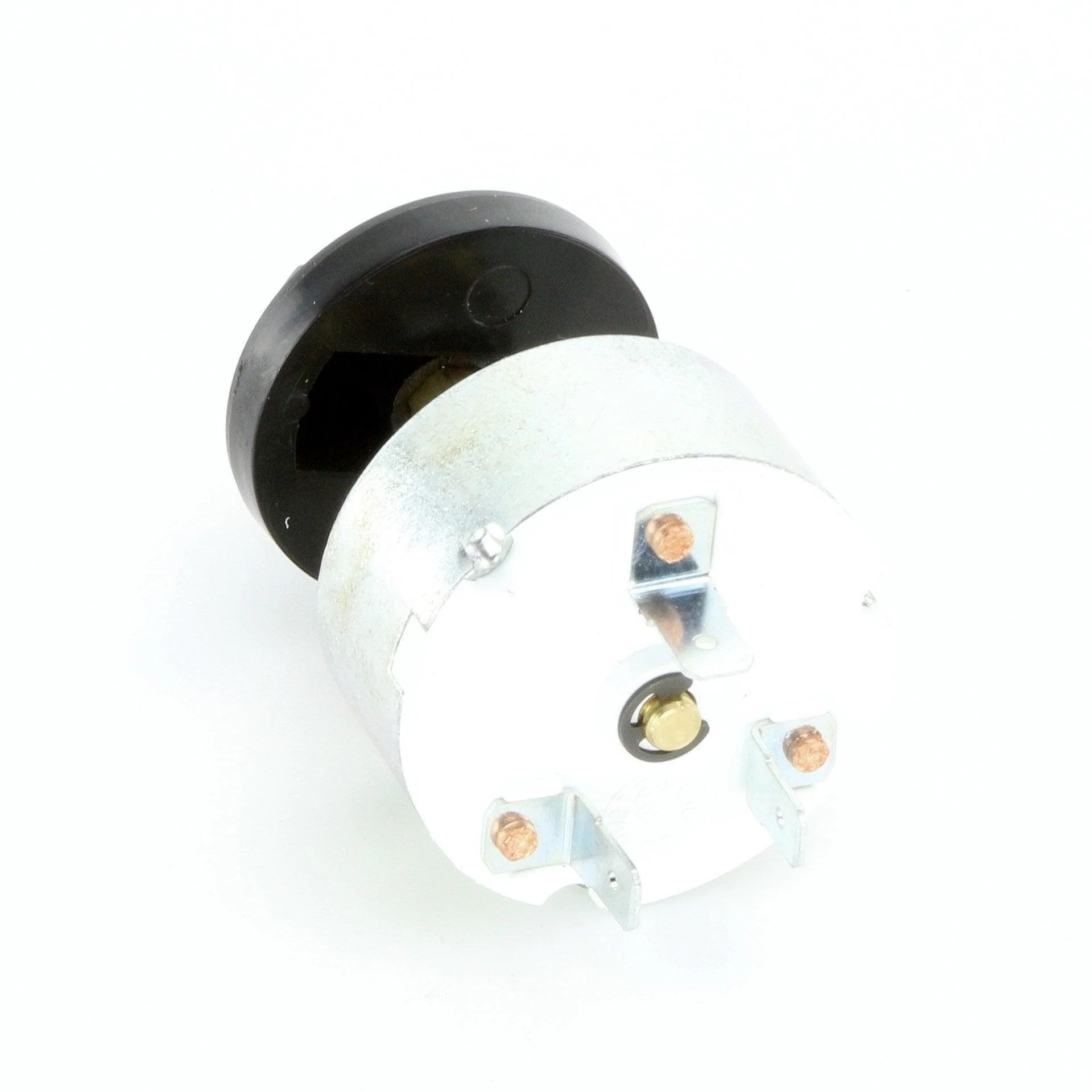

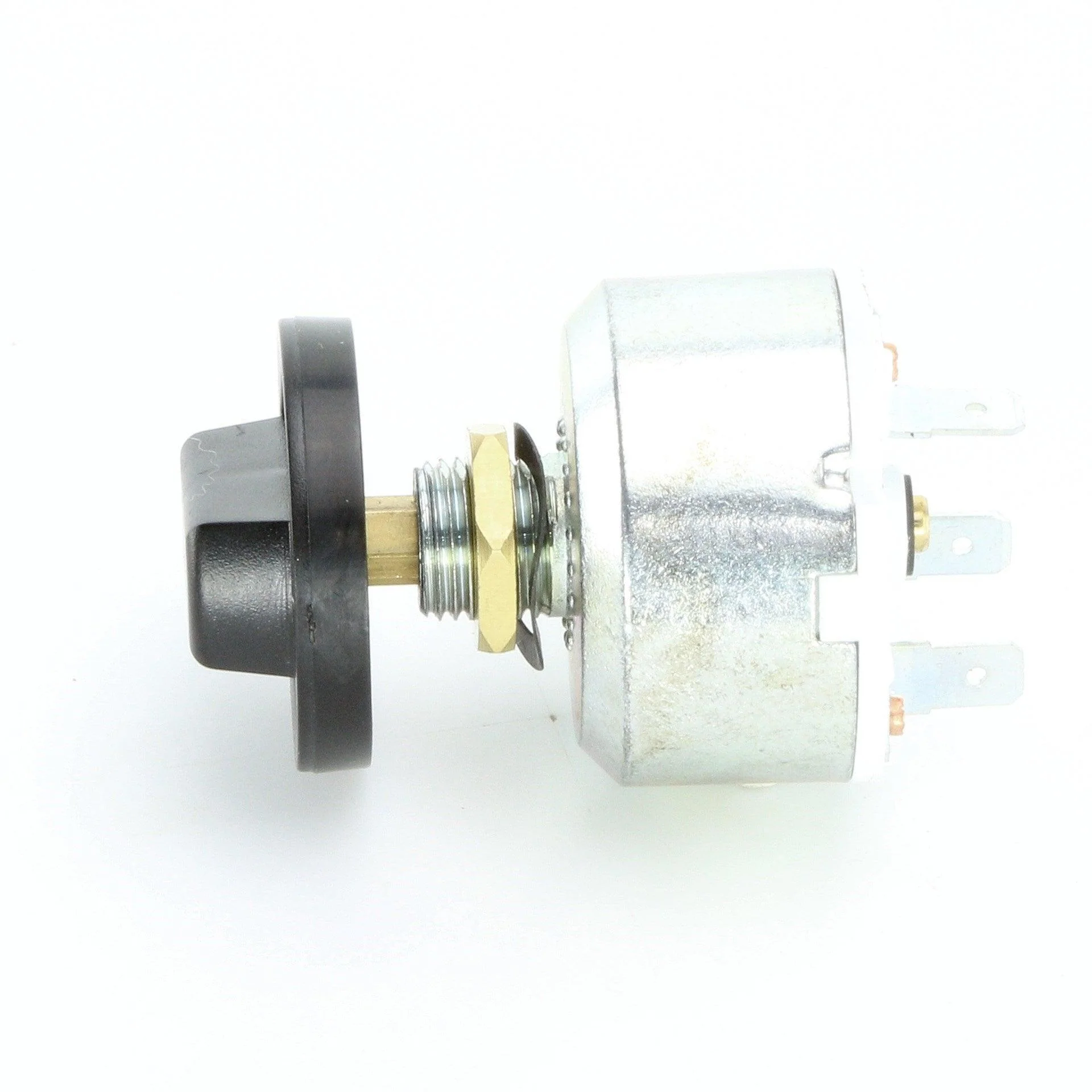

Black Rotary Headlamp Switch Black Knob

3 position OFF-SIDE-HEAD Plated steel 44m dia housing with Bakelite terminal plate with 3 spade terminal connections.

Mounts through a 14.5mm hole. Knob diameter 40mm. 40 amp current rating means you don't have to use a relay.

Front projection max 27mm. rear projection max 41mm. Max panel thickness 10mm.

Position 1 - Off

Position 2 - Side

Position 3 - Side + Head

ROTARY HEADLAMP SWITCH #ROSWHL2
