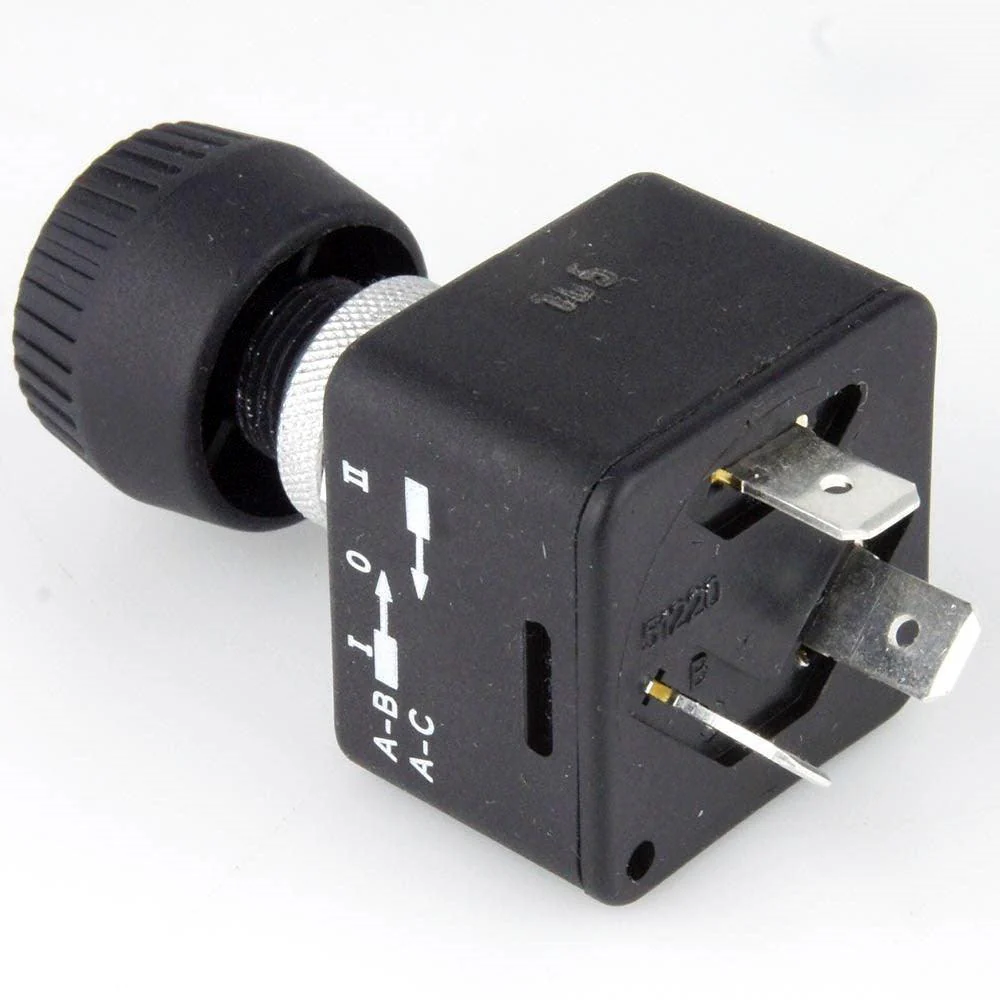

Black Rotary Switch 3 Position Spring Return
3 position LEFT, SPRING RETURN - OFF - RIGHT, SPRING RETURN
For electric windows, bonnet or boot release etc.
Three 1/4" spade terminals.
Mounts through a 12mm hole.
Maximum panel thickness 8mm.
Knob diameter 23mm.
Front projection max 25mm. Rear projection max 37mm.
Square main body 30mm x 30mm.
15 amp contacts.
ROTARY LEFT / RIGHT SPRING RETURN SWITCH #ROSWSR
$4.37
Original: $14.58
-70%Black Rotary Switch 3 Position Spring Return—
$14.58
$4.37
Description
3 position LEFT, SPRING RETURN - OFF - RIGHT, SPRING RETURN
For electric windows, bonnet or boot release etc.
Three 1/4" spade terminals.
Mounts through a 12mm hole.
Maximum panel thickness 8mm.
Knob diameter 23mm.
Front projection max 25mm. Rear projection max 37mm.
Square main body 30mm x 30mm.
15 amp contacts.
ROTARY LEFT / RIGHT SPRING RETURN SWITCH #ROSWSR
