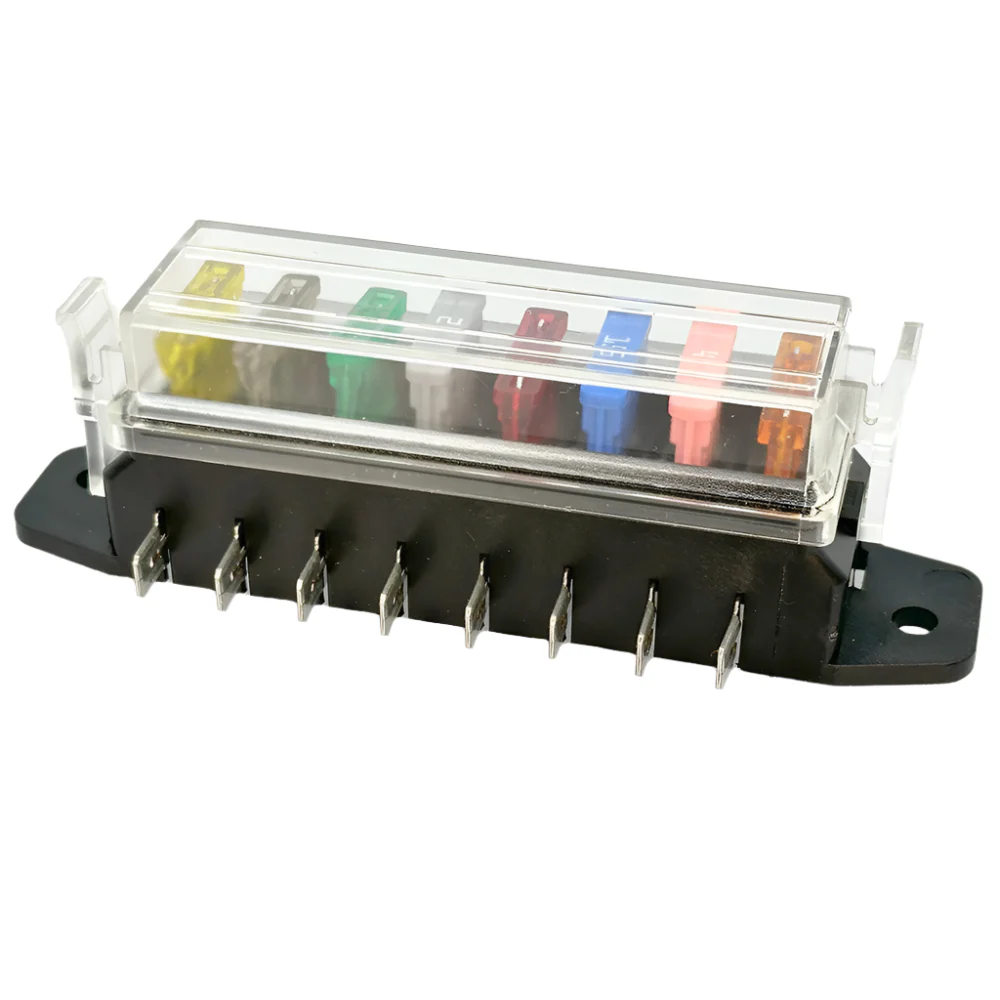

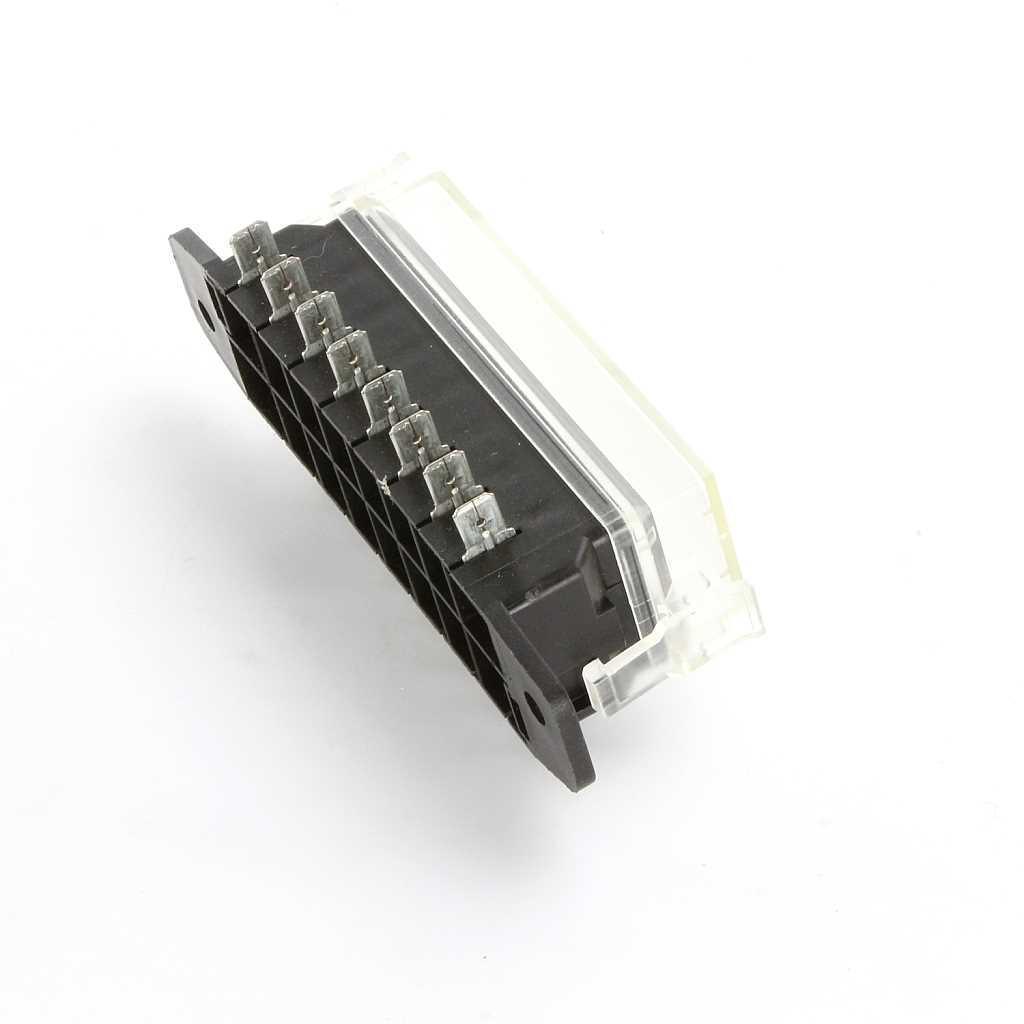

Blade Fuse Box 8 Way Side Entry

This 8-way blade fuse box is designed for standard blade type fuses and features convenient spade terminal connections on the side. The transparent clip-on cover allows for easy fuse identification and the unit is designed for surface mounting.

Key Features:

• 8-way blade fuse box
• Side entry spade terminals
• Transparent clip-on cover
• Surface mount design

Dimensions:

• Length: 120mm
• Width: 45mm
• Height: 37mm
• Mounting holes: Two 5mm offset holes, 105mm centres

Please Note: Fuses are not included.

8 WAY BLADE FUSE BOX - SIDE ENTRY #FB8S
