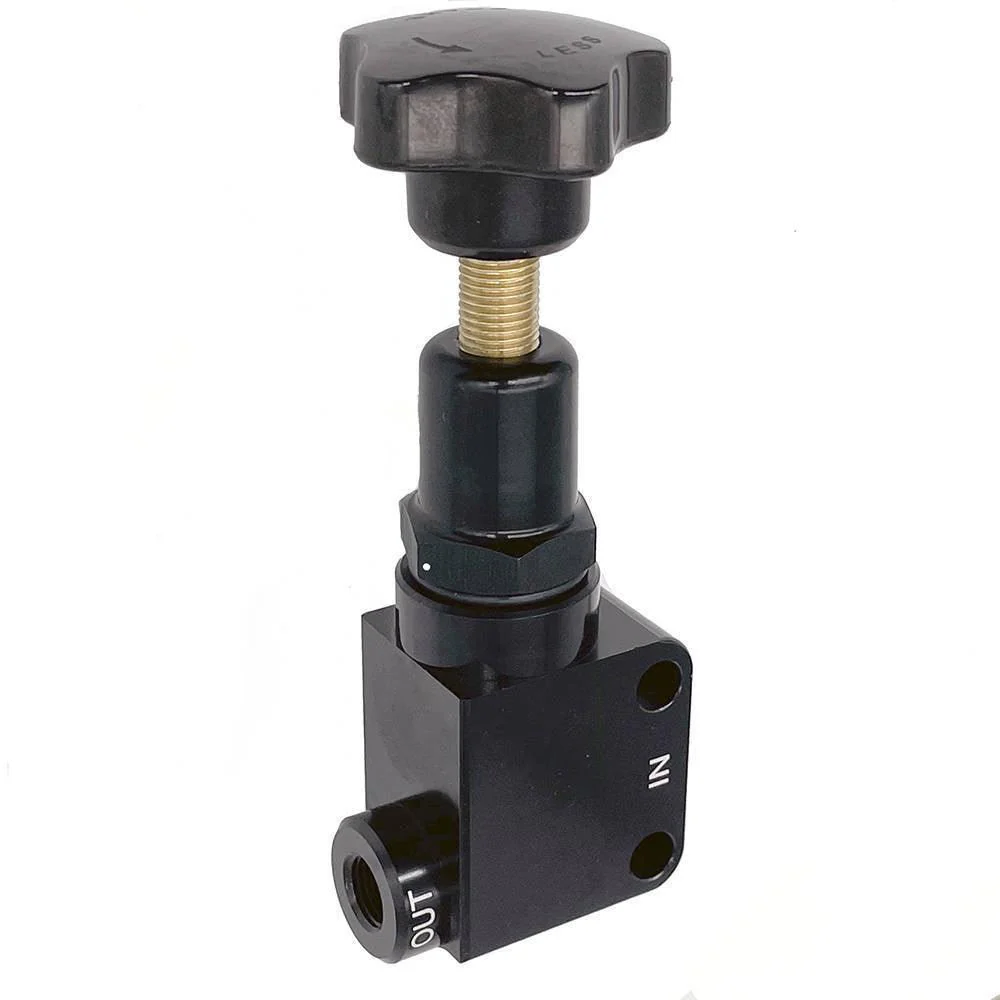

Brake Proportioning Valve
BRAKE PROPORTIONING VALVE
Install in your braking system to correct the effect of non-standard weight distribution found on many modified cars.
Up to 60% pressure reduction in either front or rear brake lines enables you to fine tune the brake balance, or dial in different braking characteristics for wet or slippery conditions.
Overall Size: 117mm x 86mm x 26mm.
Fits in a 19mm hole.

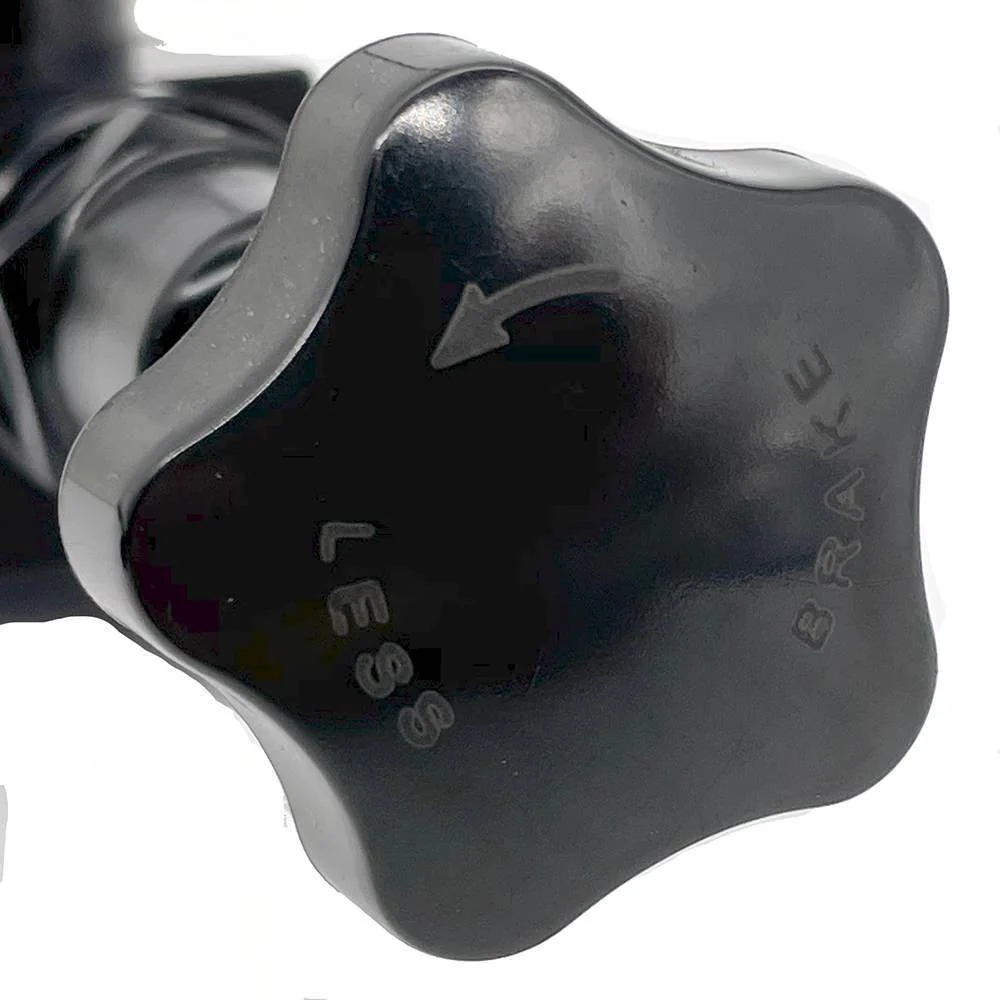

Knob diameter 37mm.
Two 7mm diameter mounting holes at 25mm centres.
1/8" NPT female inlet and outlet port threads.
Supplied with two brass adapter unions - 1/8" NPT male to 3/8" UNF female with convex seat.
BRAKE PROPORTIONING VALVE #BRKPROP4
Original: $38.44
-70%$38.44
$11.53
Description
BRAKE PROPORTIONING VALVE
Install in your braking system to correct the effect of non-standard weight distribution found on many modified cars.
Up to 60% pressure reduction in either front or rear brake lines enables you to fine tune the brake balance, or dial in different braking characteristics for wet or slippery conditions.
Overall Size: 117mm x 86mm x 26mm.
Fits in a 19mm hole.
Knob diameter 37mm.
Two 7mm diameter mounting holes at 25mm centres.
1/8" NPT female inlet and outlet port threads.
Supplied with two brass adapter unions - 1/8" NPT male to 3/8" UNF female with convex seat.
BRAKE PROPORTIONING VALVE #BRKPROP4
