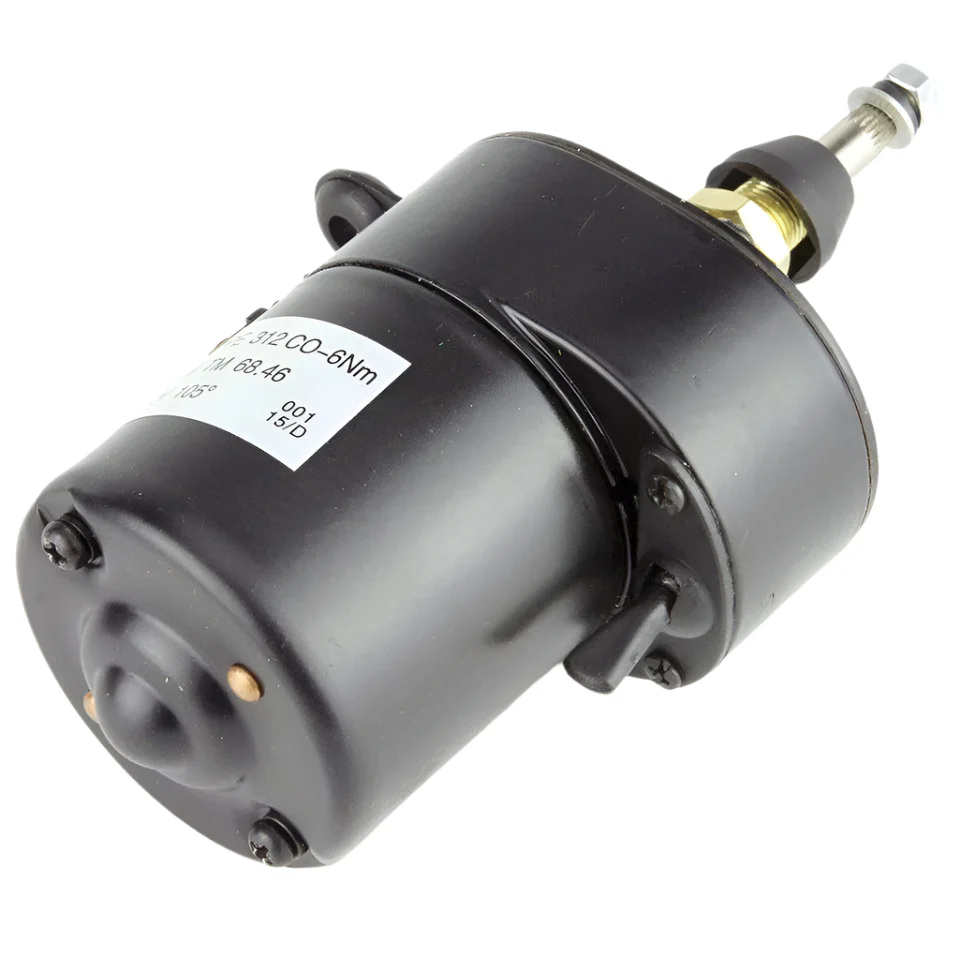

Compact Wiper Motor 85 degrees Black

85º sweep.

6Nm power.

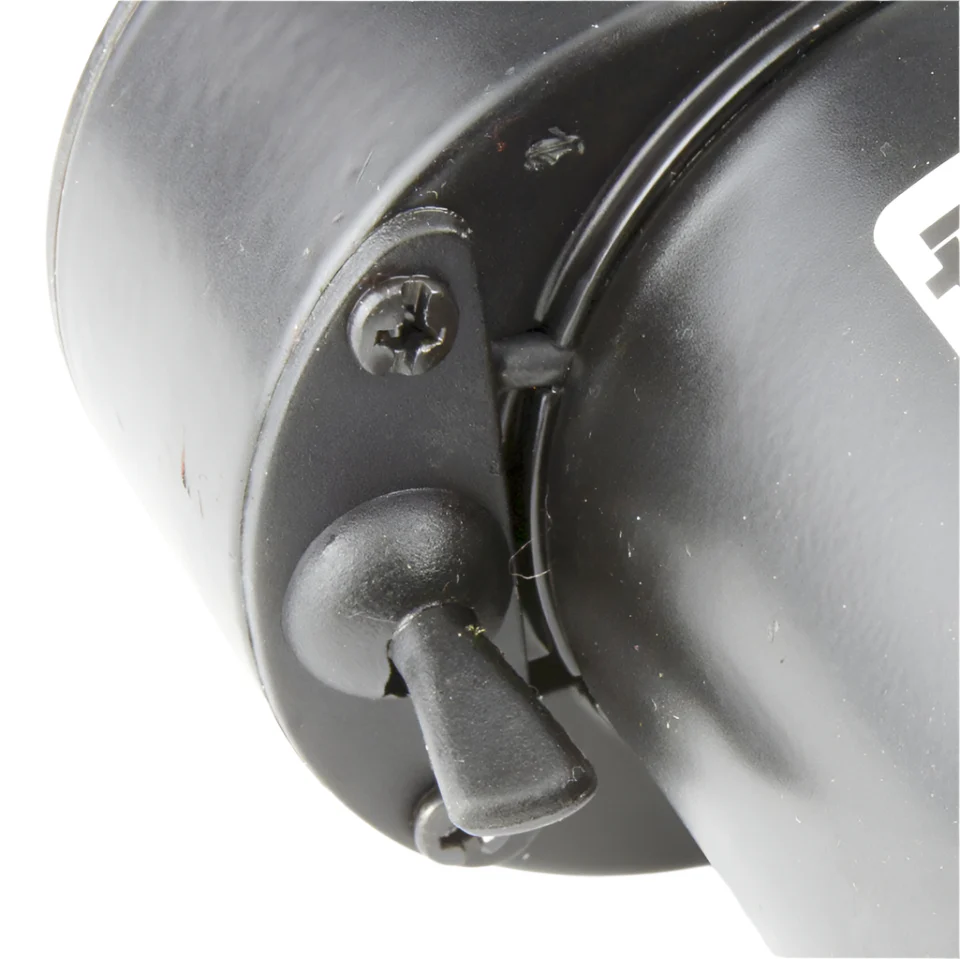

Integral ON/OFF toggle switch.

Two 1/4" male spade connectors.

Tapered spline fitting for tapered wiper blades.

Simple mounting through a 12mm hole for the shaft and an 8mm hole in an integral stabiliser bracket.

Overall shaft length 70mm or 125mm

Body length 100mm.

Motor diameter 60mm.

Weight 746 gms.

NOTE. TO PREVENT OVERHEAT AND DAMAGE TO THE MOTOR, THE +12 VOLT SUPPLY MUST INCLUDE A TEN AMP FUSE

NOTE: DO NOT STALL THE MOTOR, OR DAMAGE CAN OCCUR

MAXIMUM TORQUE 6 nm

COMPACT WIPER MOTOR #TWM85
