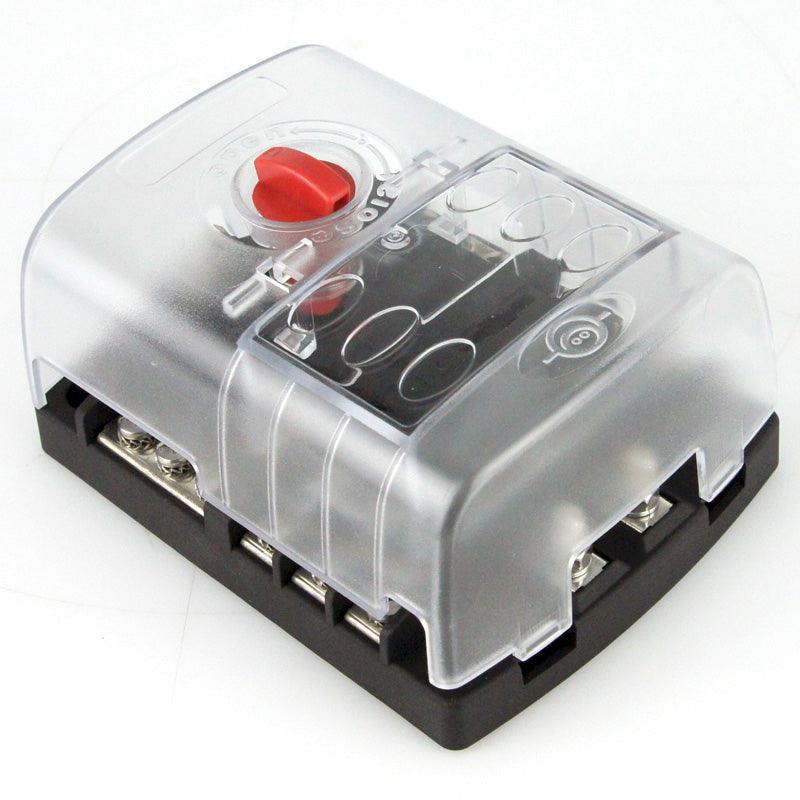

Distribution and 6 Way Fuse Box
There are three independant supply connections on this useful box -

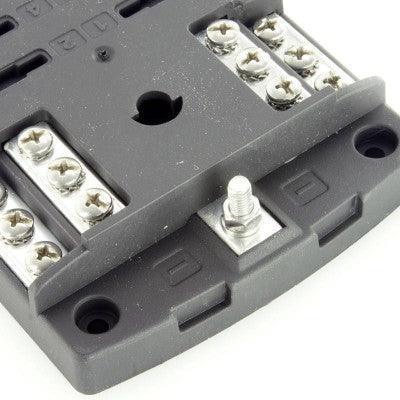

A Negative (earth) distribution with one M5 threaded stud input post and 6 x M4 threaded output screws.

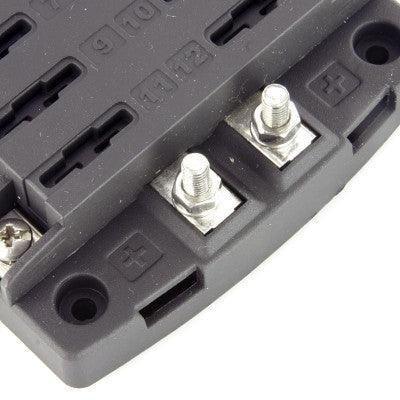

The Positive side is split into two seperate busbars, each with an M5 threaded stud input
and 6 x fused outputs so you can have a permanent live side and an ignition-switched side. (fuses not included).
You can use either ring or fork terminals on all the input and output connections.

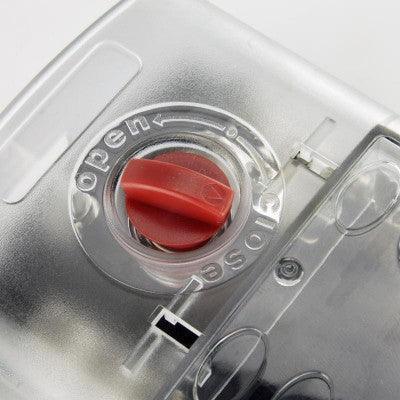

The clear plastic cover is secured or removed with half a turn of the red knob.
Overall size: 115mm x 95mm x 57mm high.
Four, 5mm dia. fixing holes at 98mm x 75mm centres
FUSES NOT INCLUDED
DISTRIBUTION AND 6 WAY FUSE BOX #FB6DST
Original: $37.12
-70%$37.12
$11.14
Description
There are three independant supply connections on this useful box -
A Negative (earth) distribution with one M5 threaded stud input post and 6 x M4 threaded output screws.
The Positive side is split into two seperate busbars, each with an M5 threaded stud input
and 6 x fused outputs so you can have a permanent live side and an ignition-switched side. (fuses not included).
You can use either ring or fork terminals on all the input and output connections.
The clear plastic cover is secured or removed with half a turn of the red knob.
Overall size: 115mm x 95mm x 57mm high.
Four, 5mm dia. fixing holes at 98mm x 75mm centres
FUSES NOT INCLUDED
DISTRIBUTION AND 6 WAY FUSE BOX #FB6DST
