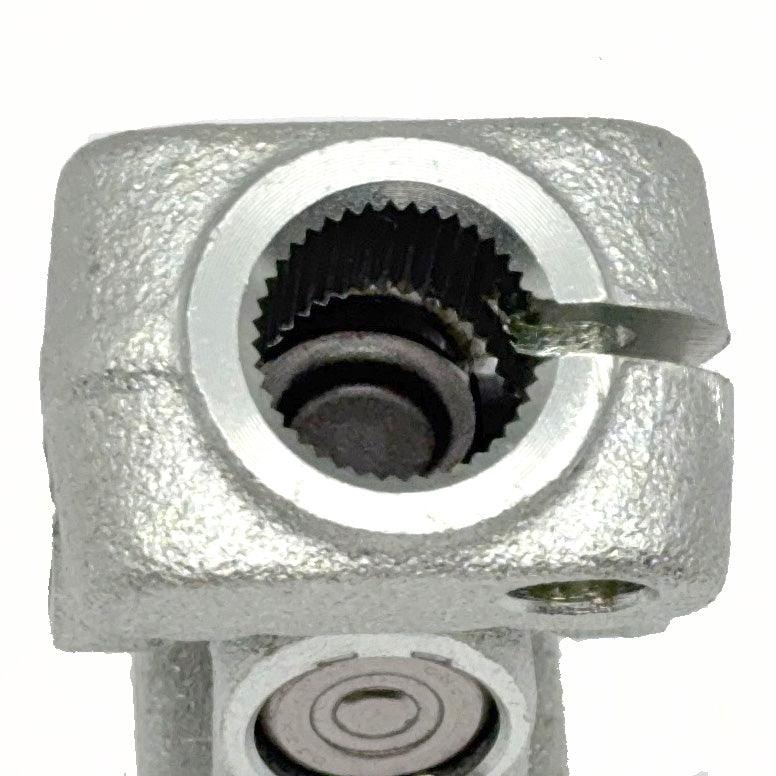

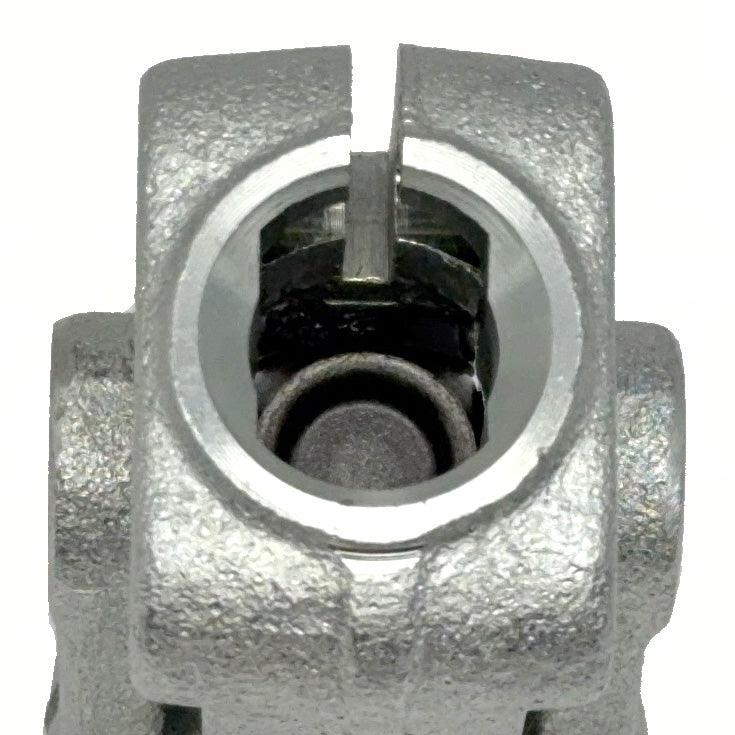

Forged Universal Steering Joint DD and 11/16" 40 Spline

'DD' at one end and 11/16"  x 40 spline at the other end.

Size 80mm long x 45mm maximum diameter.

Compact and strong needle roller joint for steering columns & gear linkages.

Maximum working angle 20 degrees.

Weight 449g.

Drilled through to accept 5/16" high tensile bolt and nut  - #516UNFBN

NOTE: 'DD' and splined shafts will need a retaining groove for the pinch bolt

FORGED UNIVERSAL JOINT DD and 11/16 40 SPLINE #UJD4
