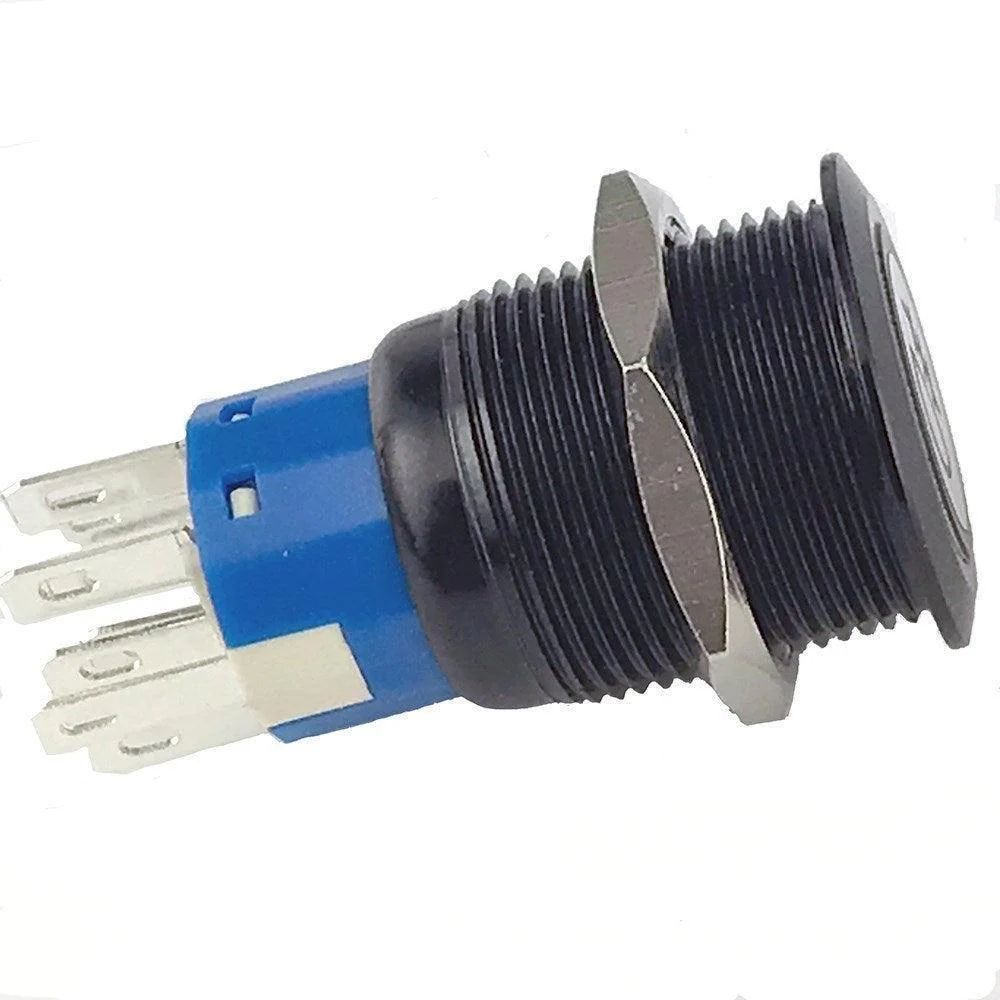

Indicator / Arrow Switch Illuminated Black Bezel

Illuminated ring and legend. Push button centre.

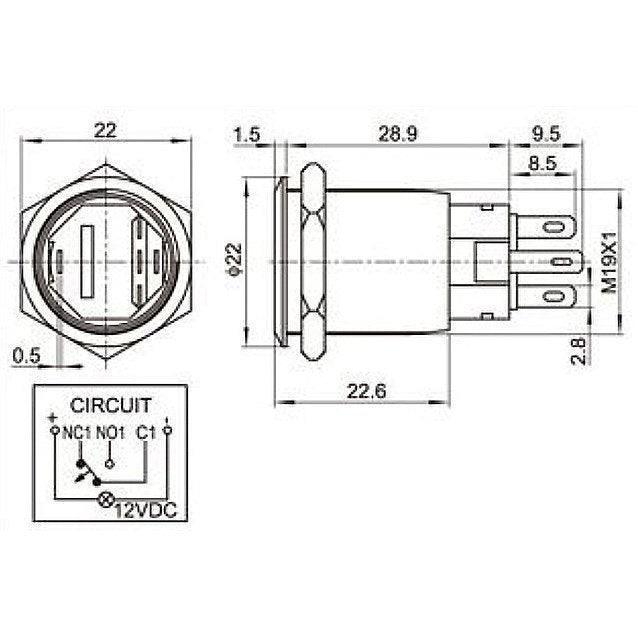

Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.

Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.

Double Pole ,Normally Open and Normally Closed contacts.

5 Amp current rating.

Supplied with six pre-assembled terminals and 200mm long wires and a plug block.

The White LED illumination has independant +12v and -12v terminals.

22mm A/F Hex nut and rubber sealing ‘O’ ring included.

LATCHING PUSH BUTTON ARROW/INDICATOR SWITCH #BPBIND
