Nut Plate Pack of 5 - Various Sizes

Discover the versatility of Nut Plates, a reliable solution widely used in the Aircraft Industry. These plates serve as an excellent alternative to rivnuts and other captive nut systems, perfect for securely fixing two panels together or creating a permanent, retained thread in thin sheet metal.

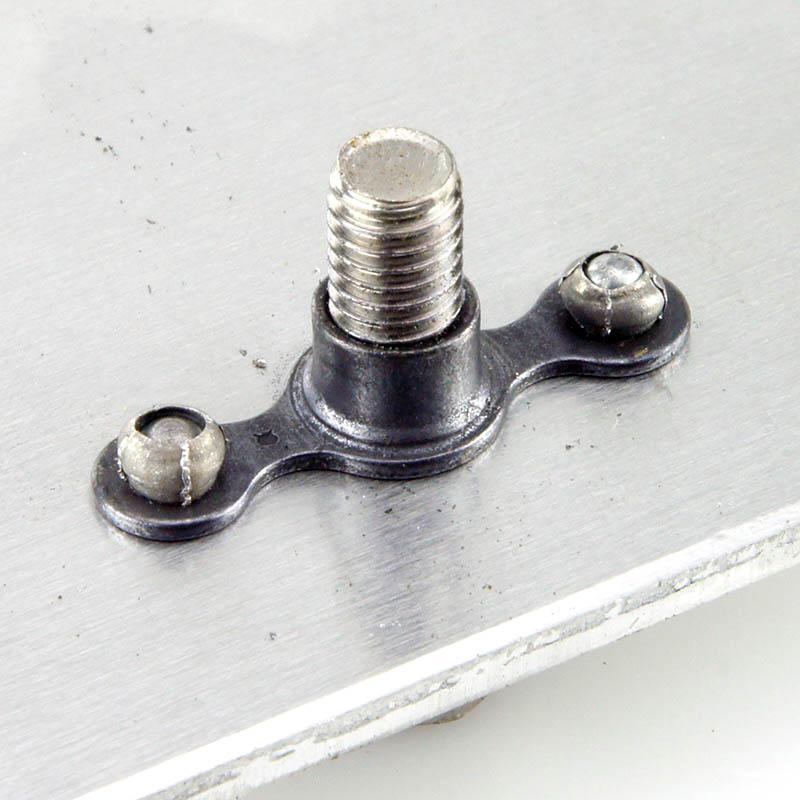

Installation is a breeze: simply secure the plated-steel Nut Plate to the underside of your panel using two countersunk rivets, drill a clearance hole for the screw, and you're all set. Enjoy perfect panel alignment every time with these expertly designed components.

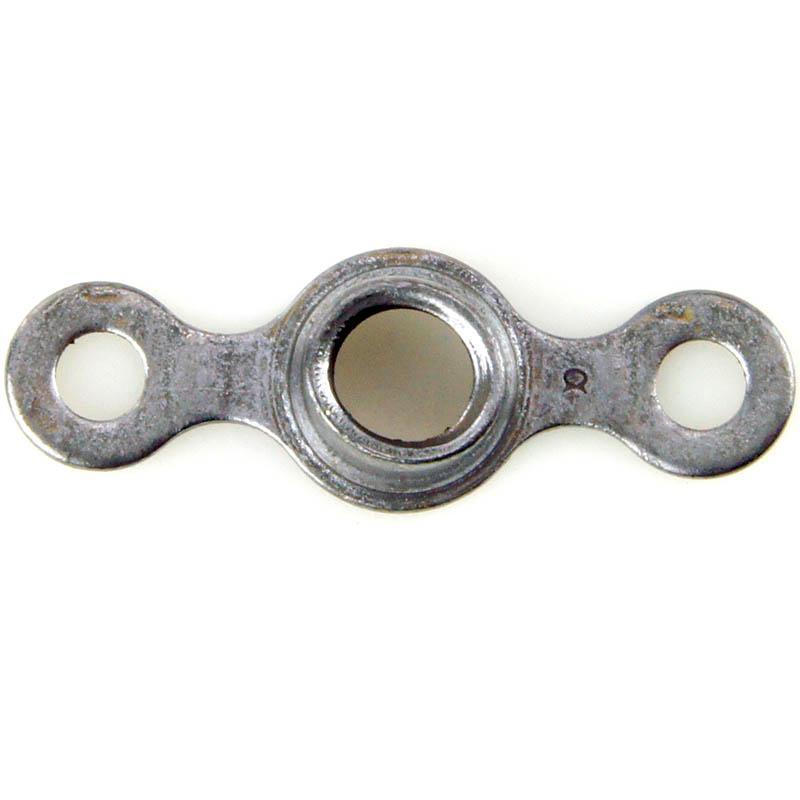

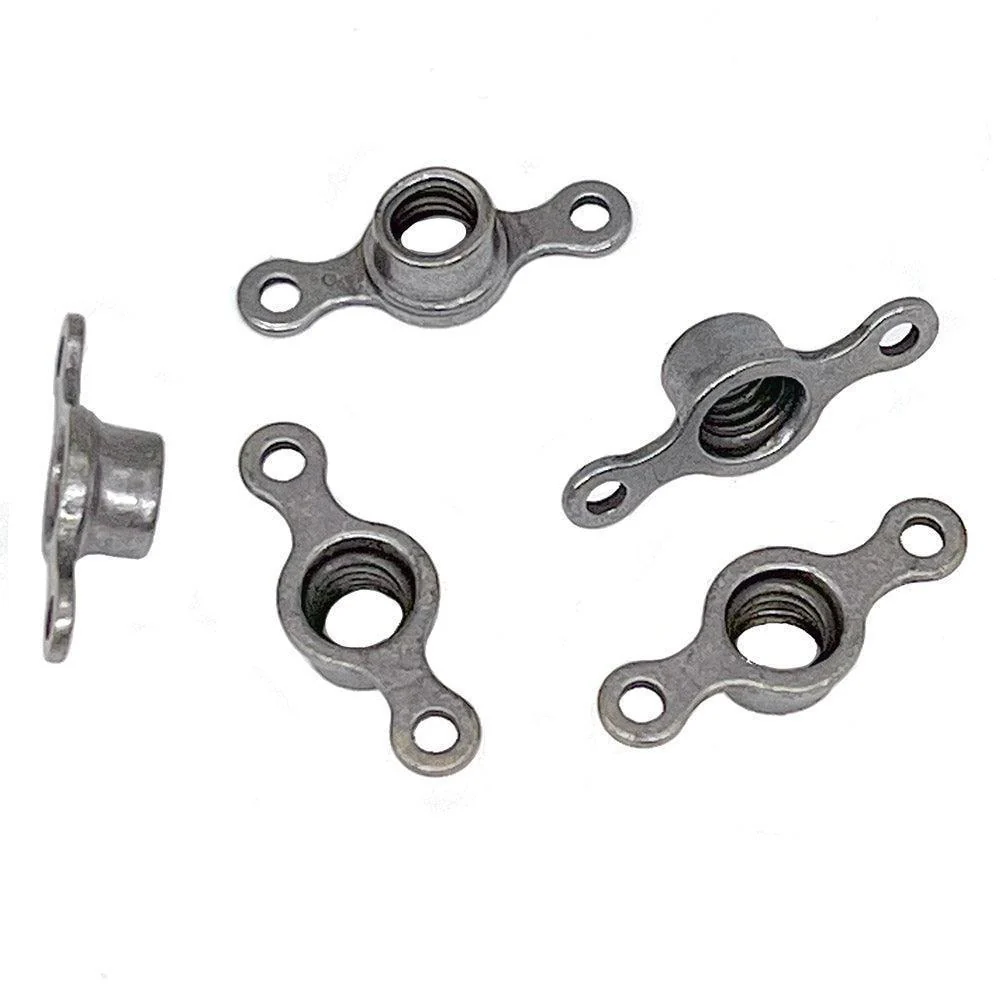

Each Nut Plate features a threaded section that is slightly deformed, providing a 'locking' grip on your screw to enhance stability and security. Available in various thread sizes, these plates come in convenient packs of 5, ensuring you have the right amount for your projects.

Available Thread Sizes:

M3 NUT PLATES

Size: 17mm x 5.8mm. Thread length: 2.5mm. Two 2.4mm holes at 12mm centres.

M4 NUT PLATES

Size: 23mm x 8mm. Thread length: 3mm. Two 2.4mm holes at 17mm centres.

M5 NUT PLATES

Size: 25mm x 9mm. Thread length: 4mm. Two 2.4mm holes at 19mm centres.

M6 NUT PLATES

Size: 29mm x 9.8mm. Thread length: 5mm. Two 3.3mm holes at 22mm centres.

M8 NUT PLATES

Size: 33mm x 12.5mm. Thread length: 6mm. Two 3.5mm holes at 26mm centres.

Whether you're in aerospace, automotive, or any other industry requiring reliable fastening solutions, these Nut Plates are designed to meet your needs with precision and ease. Elevate your projects with the durability and efficiency of Nut Plates, available in packs of 5 for your convenience.
