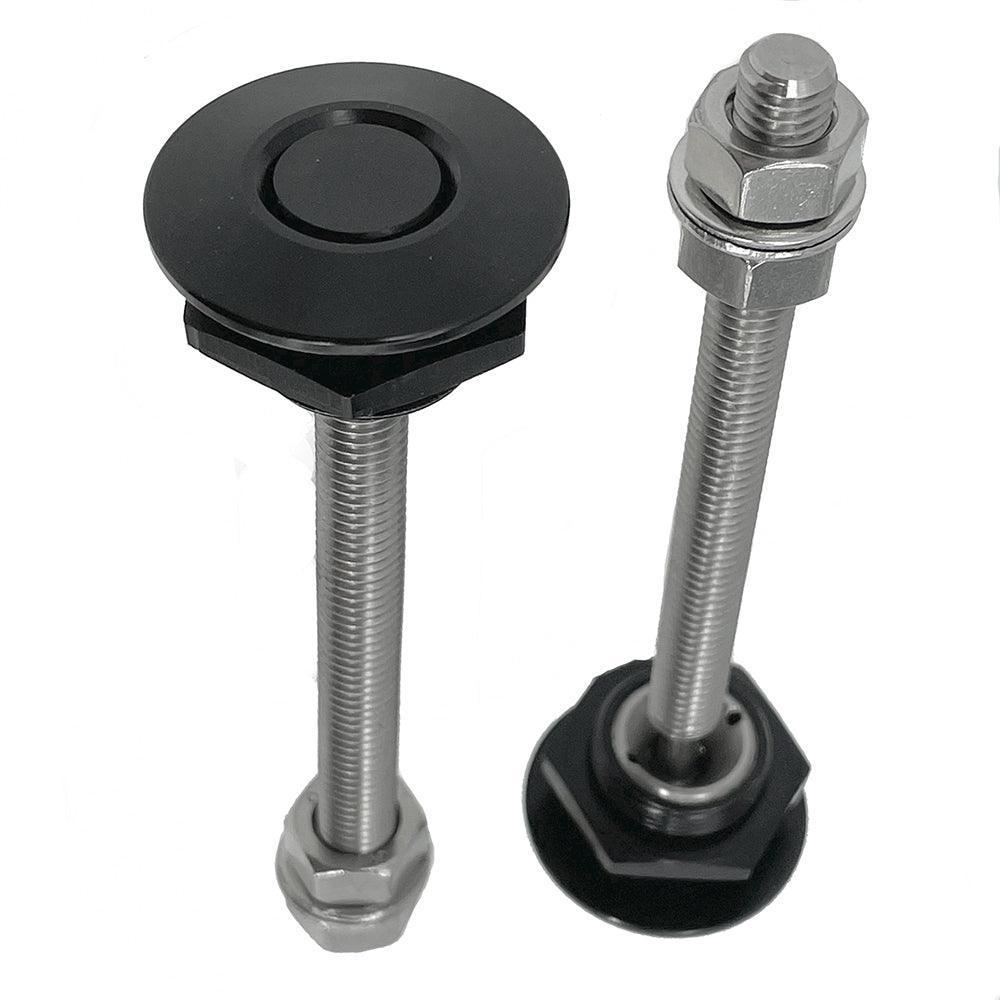

32mm Push Button Release Latch
A discreet, precision-engineered latch for bonnets, glove box and any other opening panels
The 32mm diameter, anodised aluminium push-button assembly mounts through a 19mm hole in your top panel, which can be up to 10mm thick.
The 100mm long, ball-ended, plated steel, M8 stud can be cut down and mounted through your slam panel or on a bracket beneath your top panel.
The two will ‘click’ and lock together when you close the panels.
Simply press the central latch button to release.
Watch a video of this product on our YouTube channel.
NOTE: Latching and release pressure can be adjusted by rotating the internal bush with a pair of needle nose pliers located in the two notches. Check thoroughly before taking to the road. See picture.
PUSH-BUTTON RELEASE LATCH PAIR #PBPIN
