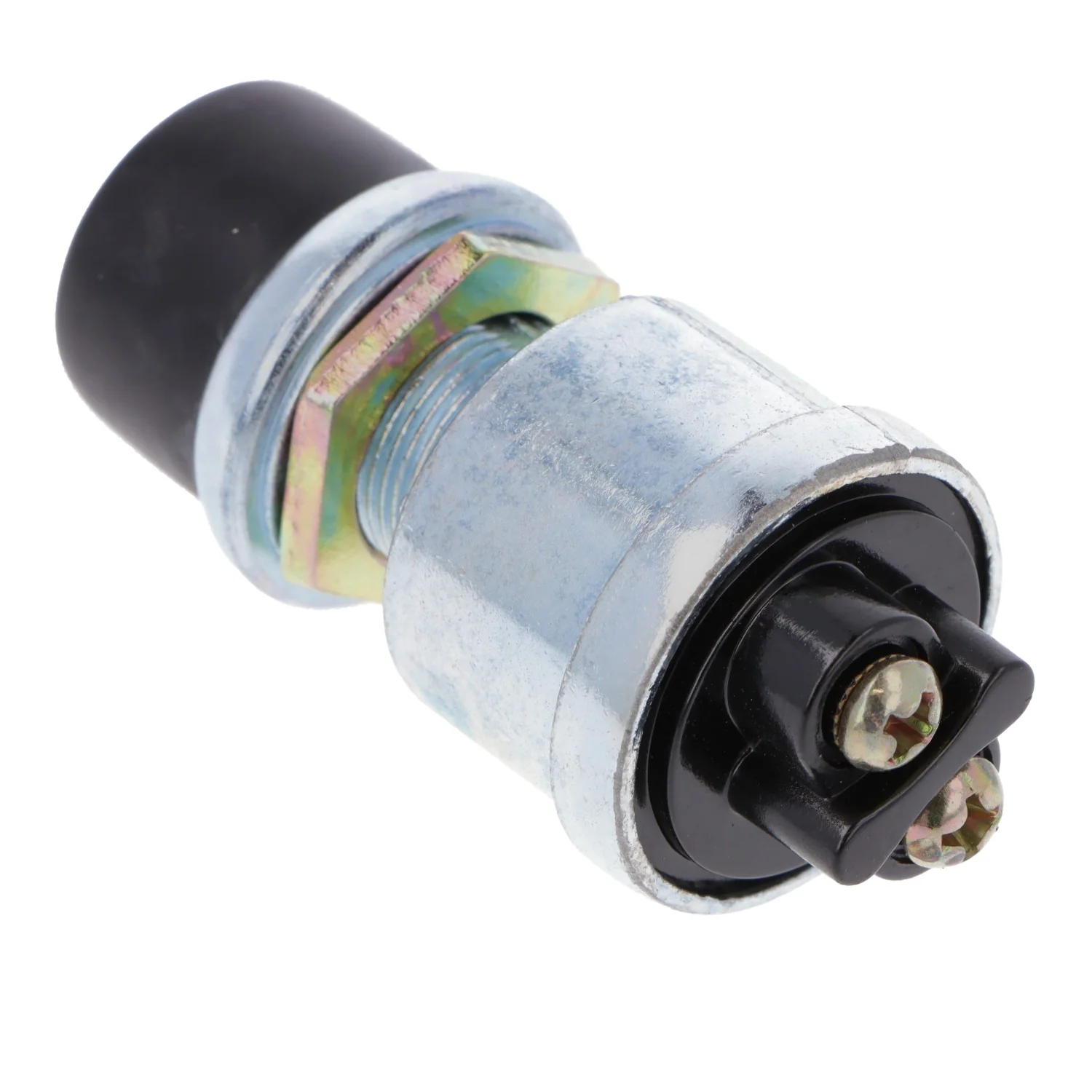

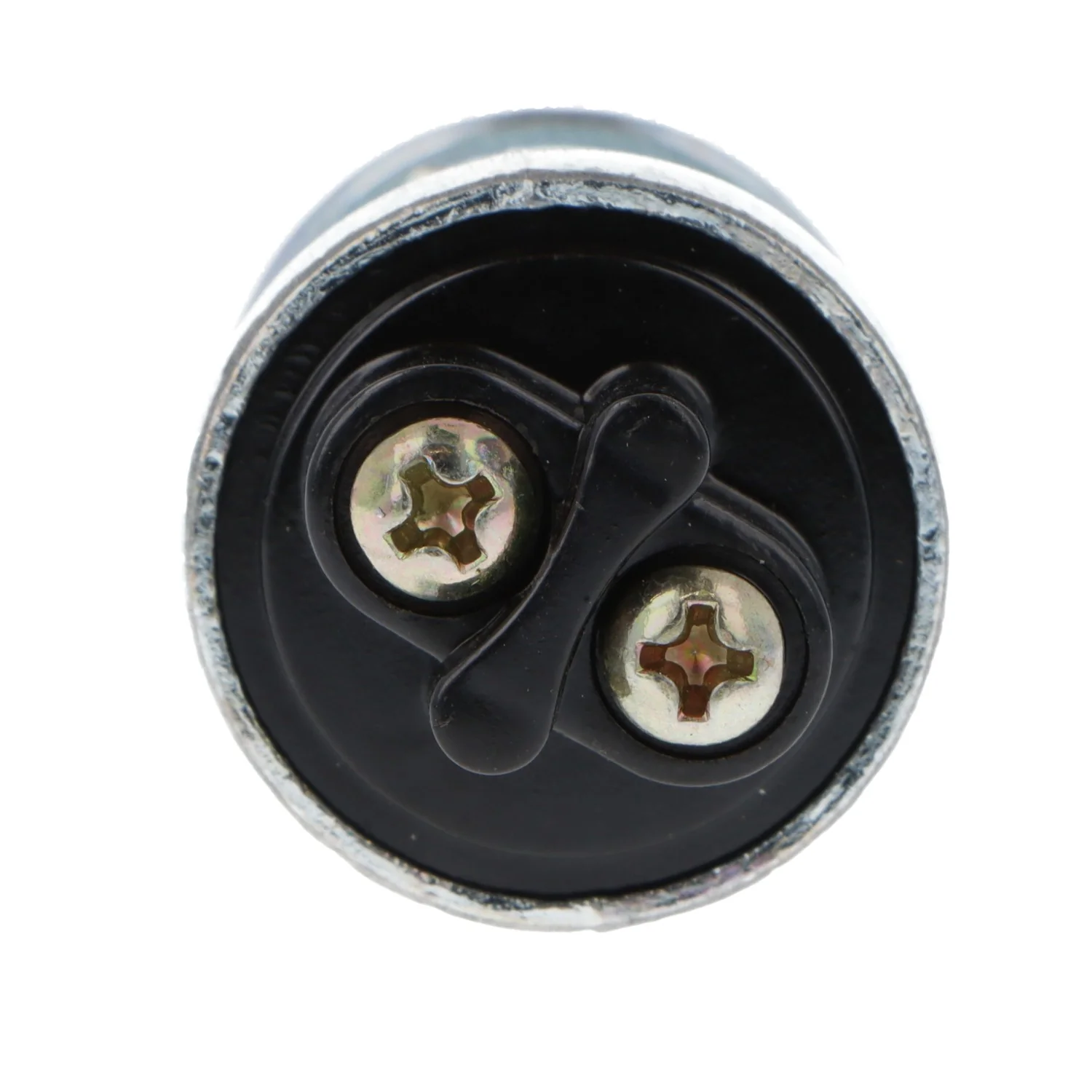

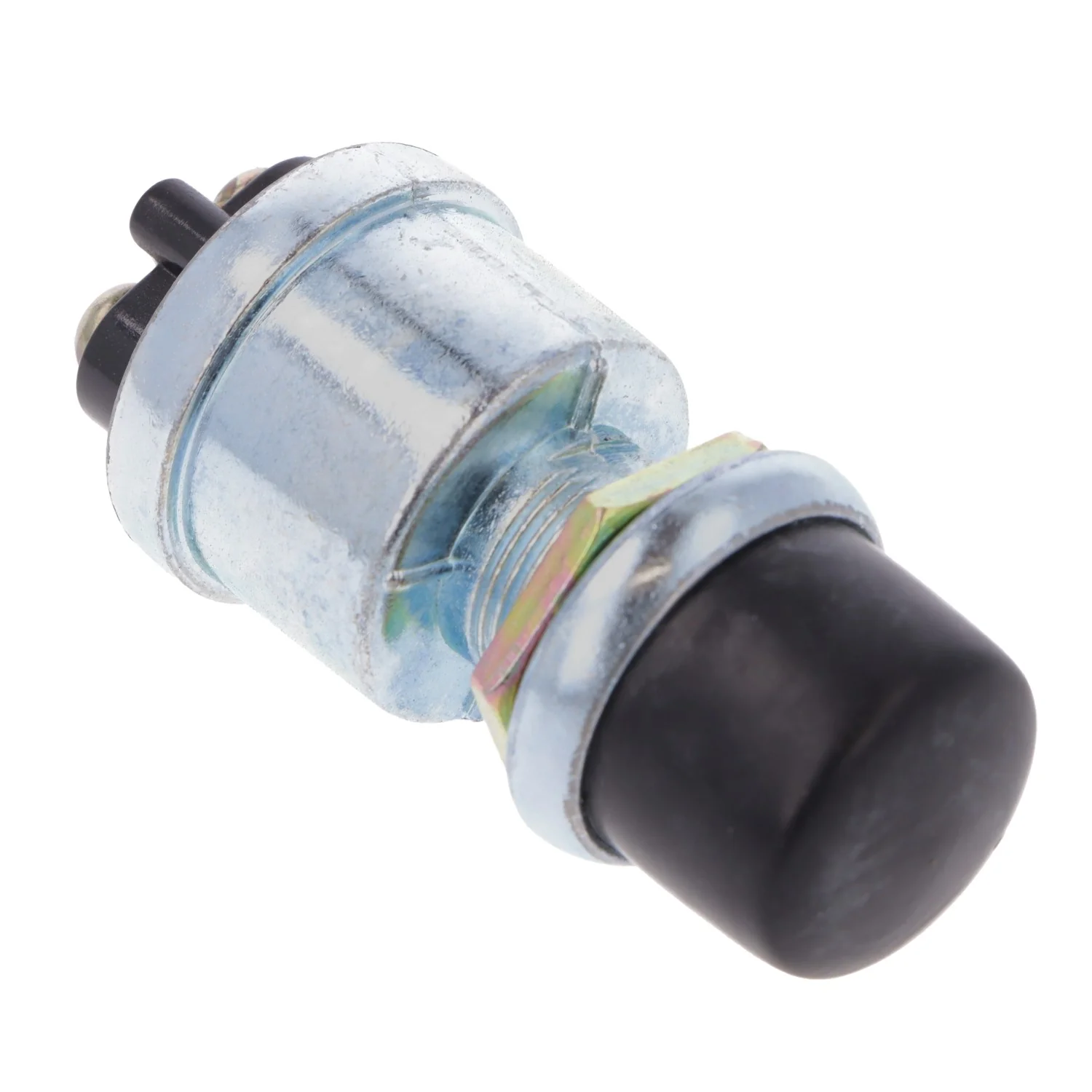

Rubber shroud push-button switch
SPLASH-PROOF RUBBER SHROUD PUSH- BUTTON SWITCH Push-to-make.
Die-cast alloy construction. Screw terminals. Fits through a 16mm diameter hole.
Maximum panel thickness 5mm. Rubber shroud diameter 26mm.
Button height above mounting panel 22mm. Rear projection 36mm.
22mm Hex backing nut. Body diameter 29mm. 30 Amp. Weight 50gms
SPLASH-PROOF RUBBER-SHROUD PUSH BUTTON SWITCH #PBSWRS
Original: $5.30
-70%$5.30
$1.59
Description
SPLASH-PROOF RUBBER SHROUD PUSH- BUTTON SWITCH Push-to-make.
Die-cast alloy construction. Screw terminals. Fits through a 16mm diameter hole.
Maximum panel thickness 5mm. Rubber shroud diameter 26mm.
Button height above mounting panel 22mm. Rear projection 36mm.
22mm Hex backing nut. Body diameter 29mm. 30 Amp. Weight 50gms
SPLASH-PROOF RUBBER-SHROUD PUSH BUTTON SWITCH #PBSWRS
