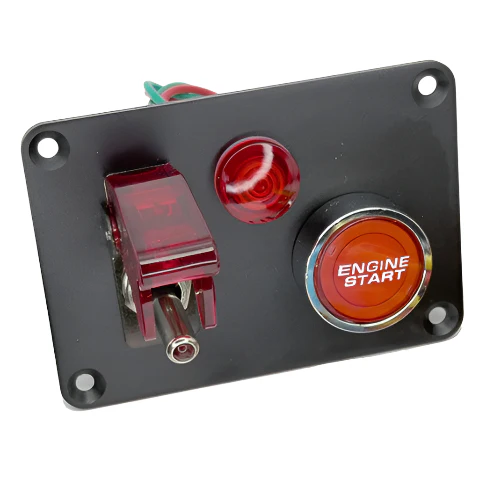

Satin Black Doomsday Two Switch Panel
Typically used for ignition and engine start.
12v LED illuminated ON/OFF toggle switch under the red doomsday cover, red warning light and push button illuminated ENGINE START switch.
Includes a standard 40 Amp relay with relay holder and 200mm cables and 100mm red, yellow and black cables with female spade connectors on one end.
2.5mm thick aluminium panel 95mm x 66mm.
Four 4.2mm countersunk mounting holes at 84mm x 55mm centres.
Fixing screws.
Front projection 43mm.
Rear projection 59mm.
Weight 320gms.
SATIN BLACK DOOMSDAY TWO SWITCH PANEL #SWPN8
