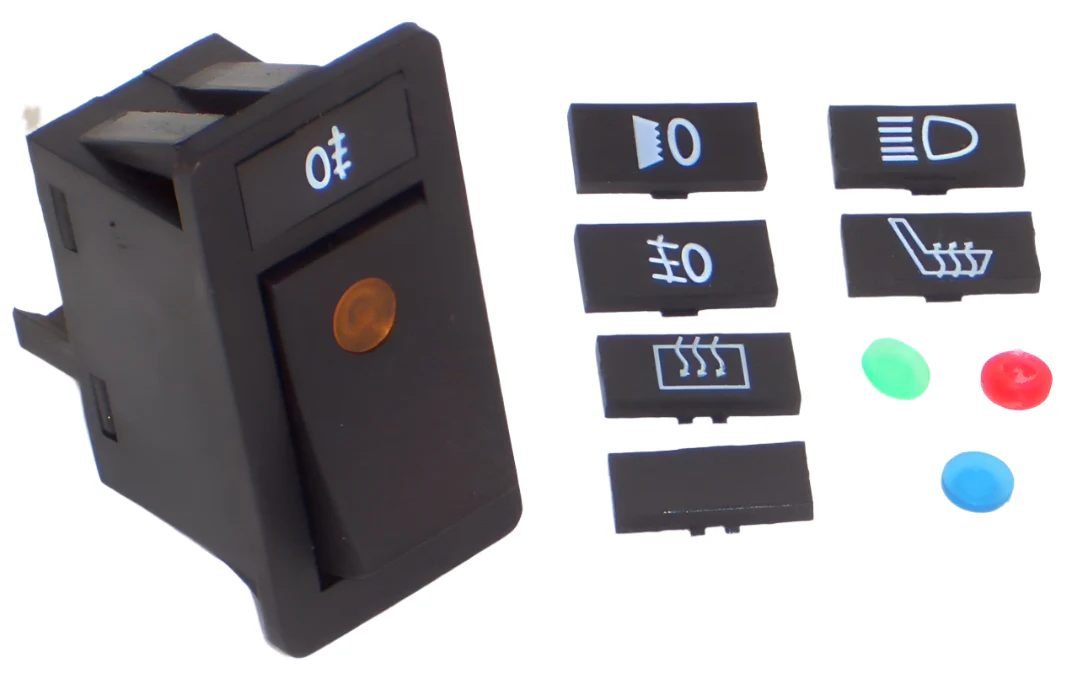

Universal Rocker Switch

Interchangeable legends and coloured lenses for internal illumination.

Fits 19mm x 38mm hole.  Best for panels 4mm thick.

20 Amp.

Bezel size 46 x 23mm.

Depth behind bezel 35mm.

1/4" male spade terminals on rear.

The diagram below shows an example of how to wire this switch to, for instance, a rear fog light. The internal warning light will illuminate only when the switch is in the 'ON' position.

UNIVERSAL ROCKER SWITCH #RSUNI
