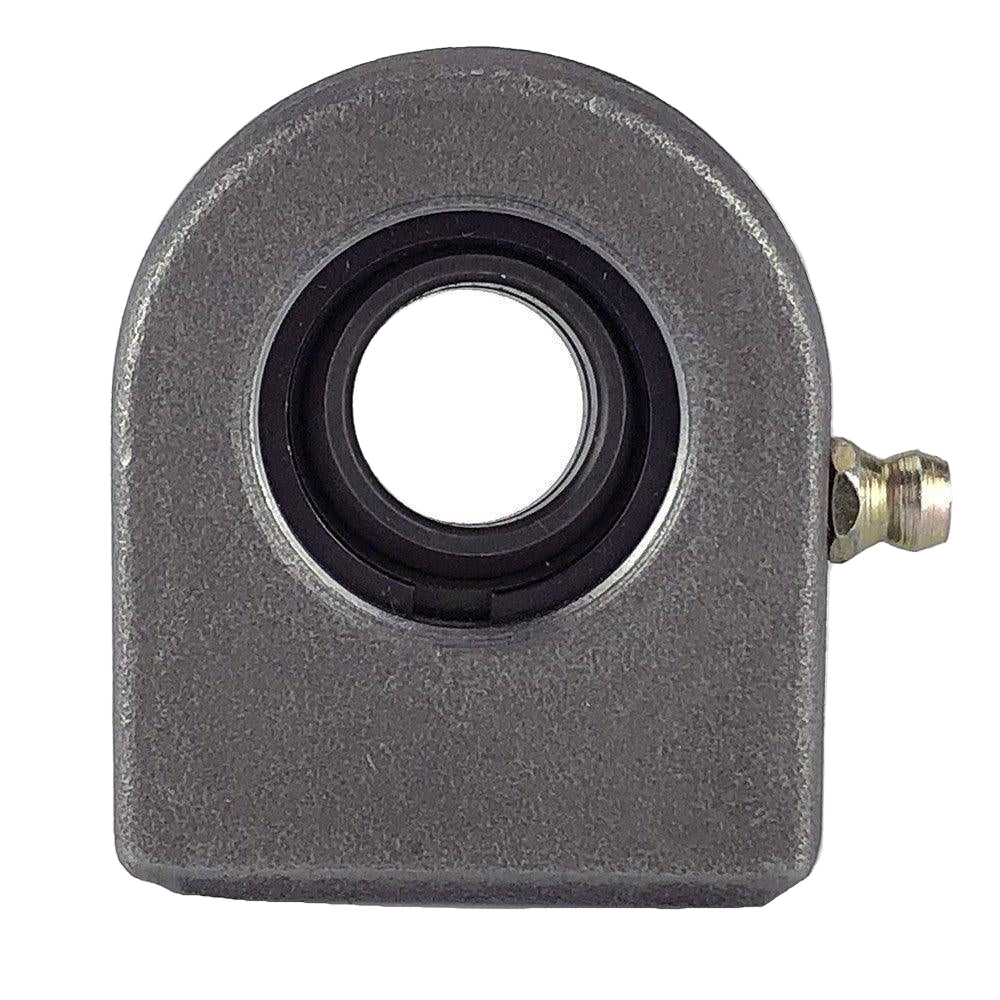

Weldable Forged Case Pillow Block 15mm
Pillow Blocks are used as floating supports for rotating shafts such as steering columns.
This one has a casing of forged steel with a chamfered base for welding onto a steel chassis or frame.
You could also drill and tap the steel housing for alternative mounting options.

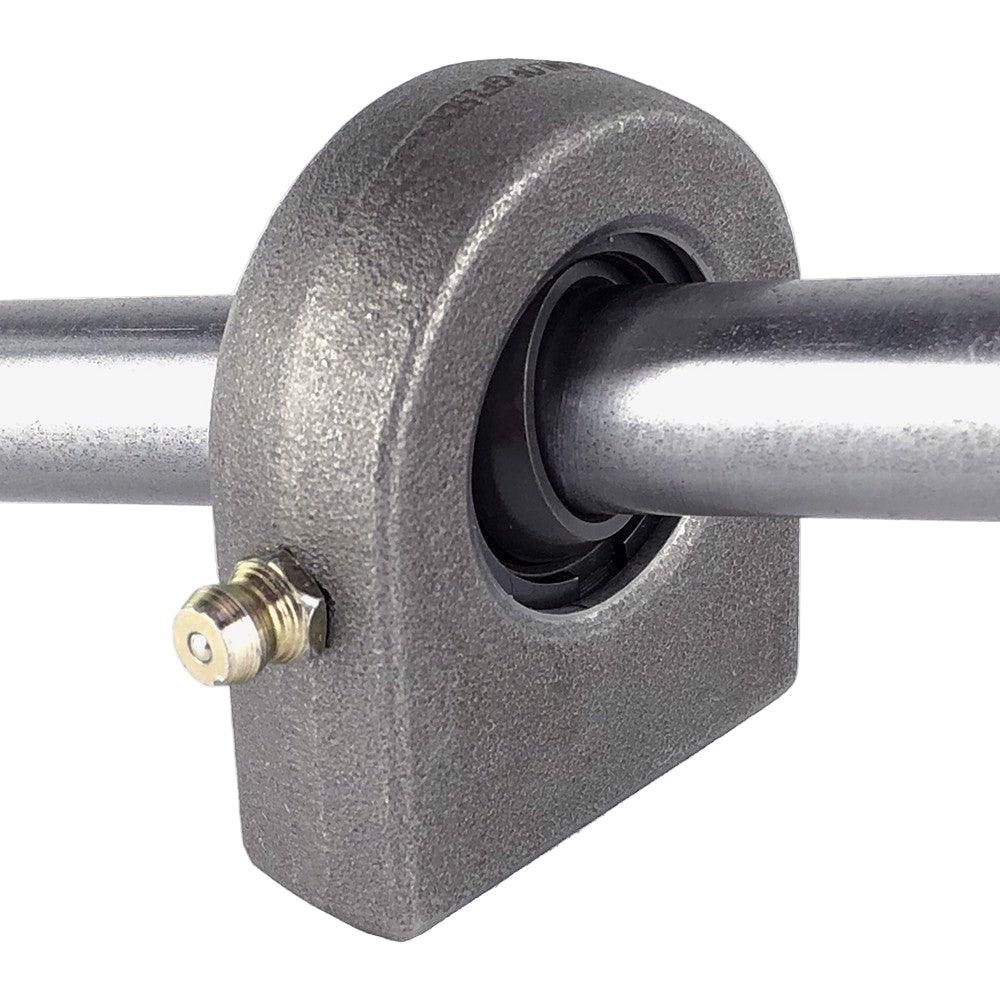

The hardened, inner, spherical bearing accepts a 15mm diameter shaft
which can ‘rock’ up to 44 degrees.

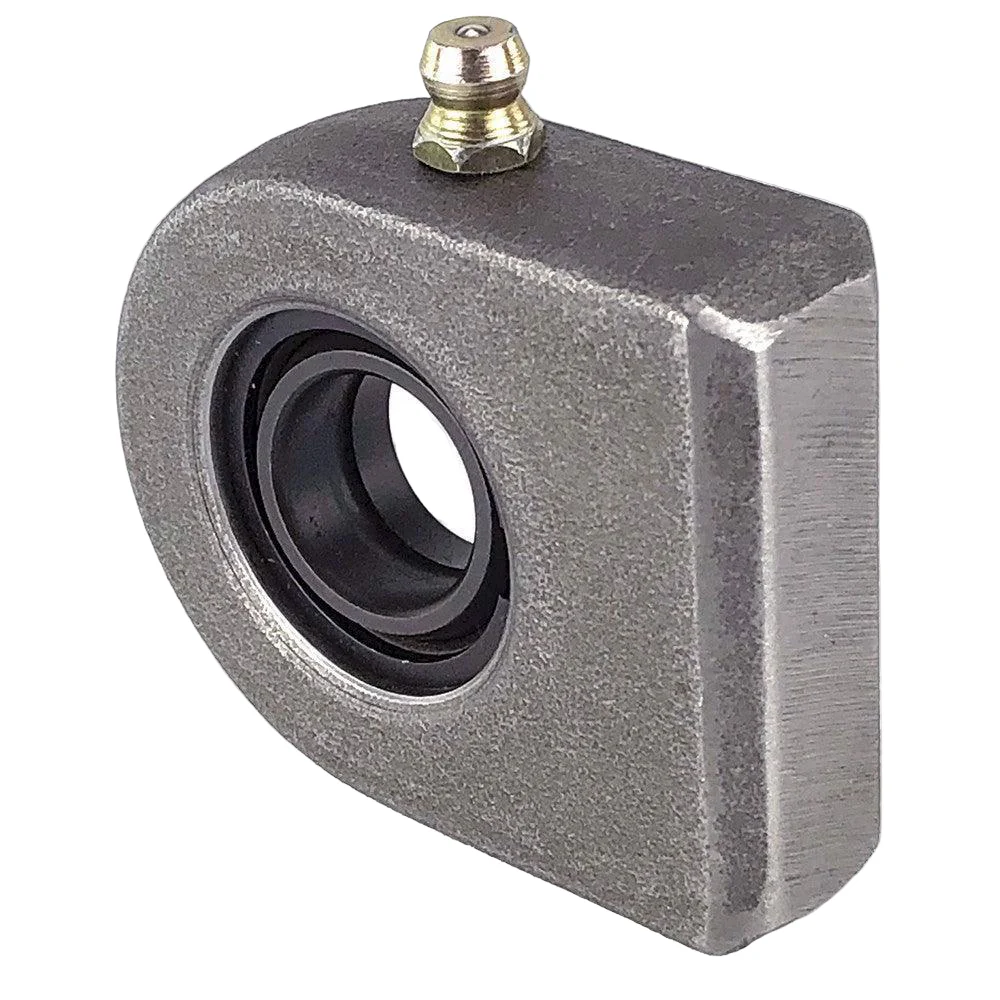

A grease nipple channels grease directly to the moving surfaces.
Size 53mm high x 45mm wide x 16mm thick.
Weight 220 gms.
NOTE: SHAFT NOT INCLUDED
SOME STEERING COLUMNS ‘OSCILLATE’ WHEN TURNING.
THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.
ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORT WITH A PILLOW BLOCK ROTATES ONLY ON IT’S OWN AXIS AND DOES NOT OSCILLATE.
WELDABLE FORGED CASEL CASE PILLOW BLOCK 15mm I.D. #PIL152
Description
Pillow Blocks are used as floating supports for rotating shafts such as steering columns.
This one has a casing of forged steel with a chamfered base for welding onto a steel chassis or frame.
You could also drill and tap the steel housing for alternative mounting options.
The hardened, inner, spherical bearing accepts a 15mm diameter shaft
which can ‘rock’ up to 44 degrees.
A grease nipple channels grease directly to the moving surfaces.
Size 53mm high x 45mm wide x 16mm thick.
Weight 220 gms.
NOTE: SHAFT NOT INCLUDED
SOME STEERING COLUMNS ‘OSCILLATE’ WHEN TURNING.
THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.
ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORT WITH A PILLOW BLOCK ROTATES ONLY ON IT’S OWN AXIS AND DOES NOT OSCILLATE.
WELDABLE FORGED CASEL CASE PILLOW BLOCK 15mm I.D. #PIL152
